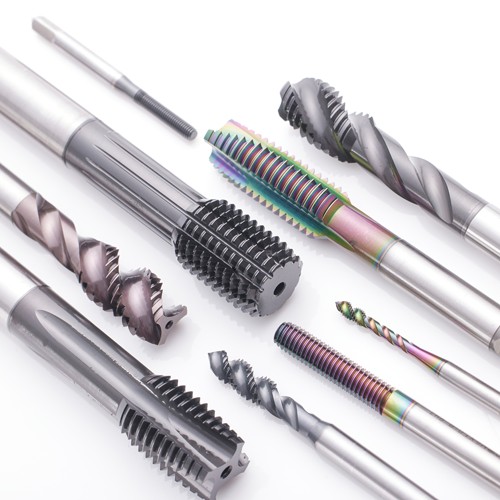

Carbide Tap Series
Solid carbide taps for high-speed, high-precision threading.
Application material: Steel, stainless steel, cast iron, copper / aluminum alloys
Coating options: TiCN, V-coated, Uncoated
Series overview
Solid carbide taps hold thread accuracy at cutting speeds far beyond HSS, with controlled chip evacuation for both through and blind holes. Spiral-flute geometries for blind holes and spiral-point geometries for through holes.
| Model | Thread | Pitch (mm) | Overall Length (mm) | Flutes |
|---|---|---|---|---|
| TP-SFT-M3 | M3 | 0.5 | — | — |
| TP-SFT-M4 | M4 | 0.7 | — | — |
| TP-SFT-M5 | M5 | 0.8 | — | — |
| TP-SFT-M6 | M6 | 1.0 | — | — |
| TP-SFT-M8 | M8 | 1.25 | — | — |
| TP-SFT-M10 | M10 | 1.5 | — | — |
| TP-SFT-M12 | M12 | 1.75 | — | — |
Backward chip evacuation for blind-hole threading in steel and stainless steel.
| Model | Thread | Pitch (mm) | Overall Length (mm) | Flutes |
|---|---|---|---|---|
| TP-SPT-M4 | M4 | 0.7 | — | — |
| TP-SPT-M5 | M5 | 0.8 | — | — |
| TP-SPT-M6 | M6 | 1.0 | — | — |
| TP-SPT-M8 | M8 | 1.25 | — | — |
| TP-SPT-M10 | M10 | 1.5 | — | — |
| TP-SPT-M12 | M12 | 1.75 | — | — |
Forward chip ejection for high-speed through-hole threading.
All specifications are representative. Please confirm exact diameter tolerances, corner radii, coating availability and stock status with sales before placing an order.
