Thread Turning Insert Series
Indexable threading inserts for metric, UN and trapezoidal profiles.
Application material: Steel, stainless steel, cast iron, hardened steel, non-ferrous metals
Coating options: TiAlN multilayer, Uncoated
Series overview

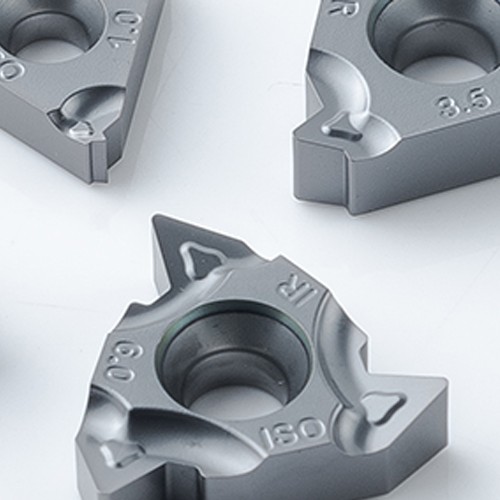

Fully profiled threading inserts with sharp, dimensionally accurate tooth flanks. One insert family covers metric 60°, UN 60° and trapezoidal profiles with stable chip control from fine to coarse pitches.
| Model | Profile | Pitch Range (mm) | Insert Size IC (mm) | Application |
|---|---|---|---|---|
| 16IR AG60 | ISO metric 60° | 0.5–1.5 | 9.525 | External / internal steel threading |
| 16IR AG75 | ISO metric 60° | 1.0–3.0 | 9.525 | Stainless steel, tough materials |
| 22IR AG60 | ISO metric 60° | 1.0–3.0 | 12.7 | Heavy-duty threading, deep threads |
| 16NR AG55 | Trapezoidal 30° | 1.5–6.0 | 9.525 | Trapezoidal lead screws |
| 16ER 14UN | UN 60° | TPI 14–28 | 9.525 | Inch threads on pipe & fittings |
ISO metric external and internal threading, pitch range 0.5–3.0 mm.
All specifications are representative. Please confirm exact diameter tolerances, corner radii, coating availability and stock status with sales before placing an order.
