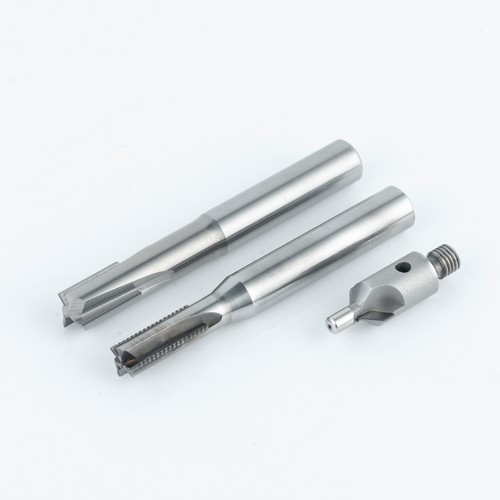

PCD Series
Polycrystalline diamond end mills and inserts for non-ferrous and abrasive materials.
Application material: High-silicon aluminum, copper, brass, graphite, carbon-fiber composites, green ceramics
Coating options: Uncoated (PCD)
Series overview
PCD tools deliver mirror finishes and extreme tool life in abrasive non-ferrous materials where carbide wears rapidly. Ideal for automotive aluminum components, graphite electrode machining and composite aerospace parts.
| Model | Diameter (mm) | Flute Length (mm) | Overall Length (mm) | Shank (mm) | Flutes |
|---|---|---|---|---|---|
| PCEM030050 | — | — | — | — | — |
| PCEM040060 | — | — | — | — | — |
| PCEM060060 | — | — | — | — | — |
| PCEM080070 | — | — | — | — | — |
| PCEM100080 | — | — | — | — | — |
| PCEM120090 | — | — | — | — | — |
High-speed milling of high-silicon aluminum and graphite with mirror surface finish.
| Model | Grade | Insert Size IC (mm) | Corner Radius (mm) | Application |
|---|---|---|---|---|
| DCGT11T302 | PCD10 | 9.525 | 0.2 | Finishing aluminum, copper |
| DCGT070202 | PCD10 | 6.35 | 0.2 | Small-part aluminum turning |
| CCGT09T302 | PCD20 | 9.525 | 0.2 | Graphite, composites, green ceramics |
| TCGT110202 | PCD20 | 6.35 | 0.2 | High-silicon aluminum (17–22% Si) |
Ultra-long-life turning of aluminum alloys, copper and composites.
All specifications are representative. Please confirm exact diameter tolerances, corner radii, coating availability and stock status with sales before placing an order.
