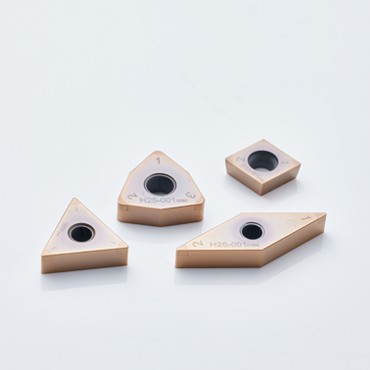

PCBN Series
Superhard polycrystalline cubic boron nitride tools for hardened steel, cast iron and superalloys.
Application material: Hardened steel HRC 45–70, grey / ductile cast iron, powder metallurgy steel, superalloys
Coating options: Uncoated (CBN), TiN / TiAlN coated
Series overview
PCBN is second only to diamond in hardness and retains its cutting edge at temperatures far beyond carbide limits, enabling hard turning that replaces grinding. Our CBN grades are tailored for finish and continuous cutting of hardened components, interrupted cutting of cast iron and high-temperature alloy machining.
| Model | Grade | Insert Size IC (mm) | Corner Radius (mm) | Application |
|---|---|---|---|---|
| CNGA120408 | CBN100 | 12.9 | 0.8 | Hardened steel HRC 45–65, continuous cut |
| CNGA120404 | CBN100 | 12.9 | 0.4 | Finish hard turning, fine surfaces |
| DNMG150608 | CBN200 | 15.875 | 0.8 | Grey cast iron, roughing to finishing |
| SNMG120408 | CBN200 | 12.7 | 0.8 | Ductile cast iron, interrupted cut |
| TNMG160404 | CBN300 | 16.6 | 0.4 | Powder metallurgy steel, superalloys |
| WNMG080408 | CBN200 | 12.7 | 0.8 | General hardened steel turning |
Finish and semi-finish hard turning of hardened steel and cast iron, replacing grinding operations.
| Model | Grade | Insert Width (mm) | Max Groove Depth (mm) | Application |
|---|---|---|---|---|
| PGN300-CBN | CBN200 | 3.0 | 5.0 | Precision grooving in cast iron |
| PGN200-CBN | CBN100 | 2.0 | 4.0 | Fine grooving, hardened steel |
| SEKT13-CBN | CBN300 | 13.0 | 7.0 | Milling inserts for cast iron faces |
High-efficiency milling and precision grooving in cast iron and hardened materials.
All specifications are representative. Please confirm exact diameter tolerances, corner radii, coating availability and stock status with sales before placing an order.
