Parting & Grooving Insert Series
Double-edge parting and grooving inserts with stable, low-force cutting.
Application material: Steel, stainless steel, cast iron, aluminum alloys
Coating options: TiAlN, Uncoated
Series overview
Double-edge geometry doubles edge utilization and lowers cutting forces for stable parting on Swiss-type and conventional lathes. Self-centering insert seat keeps widths accurate for grooving, profiling and part-off.
| Model | Insert Width (mm) | Max Groove Depth (mm) | Insert Size IC (mm) | Application |
|---|---|---|---|---|
| PG2002-2.00 | 2.0 | 3.5 | 9.525 | Fine parting, small parts |
| PG2002-3.00 | 3.0 | 4.5 | 9.525 | General parting, steel & stainless |
| PG3003-4.00 | 4.0 | 6.0 | 12.7 | Bar parting up to Ø80 mm |
| PG3003-5.00 | 5.0 | 7.0 | 12.7 | Heavy parting, large bars |
| PG4005-3.00 | 3.0 | 5.0 | 12.7 | Precision external grooving |

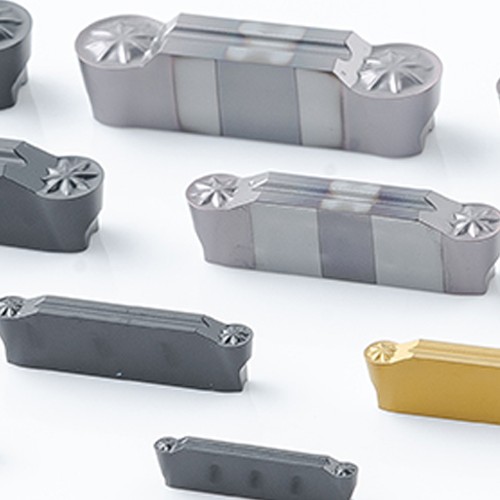

Part-off and external grooving with two cutting edges per insert.
All specifications are representative. Please confirm exact diameter tolerances, corner radii, coating availability and stock status with sales before placing an order.
